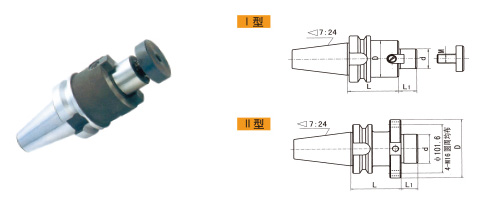

| 端面銑刀刀柄 |
|
| 型號(hào)規(guī)格 |
型式 |
尺 寸 |
壓緊螺釘 |
| d |
D |
L |
L1 |
型號(hào) |
規(guī)格 |
| JT/BT |
40-XD22-60 |
Ⅰ |
22 |
40 |
60 |
19 |
XD22-1 |
M10 |
| JT/BT |
40-XD27-60 |
27 |
50 |
21 |
XD27-1 |
M12 |
| JT/BT |
40-XD32-60 |
32 |
60 |
24 |
XD32-1 |
M16 |
| JT/BT |
40-XD40-60 |
40 |
70 |
27 |
XD40-1 |
M20 |
| JT/BT |
40-XD50-60 |
50 |
90 |
30 |
XD50-1 |
M24 |
| JT/BT |
45-XD22-60 |
II |
22 |
40 |
60 |
19 |
XD22-1 |
M10 |
| JT/BT |
45-XD27-60 |
27 |
50 |
21 |
XD27-1 |
M12 |
| JT/BT |
45-XD32-60 |
32 |
60 |
24 |
XD32-1 |
M16 |
| JT/BT |
45-XD40-60 |
40 |
70 |
27 |
XD40-1 |
M20 |
| JT/BT |
45-XD50-60 |
50 |
90 |
30 |
XD50-1 |
M24 |
| JT/BT |
50-XD22-75 |
Ⅰ |
22 |
40 |
75 |
19 |
XD22-1 |
M10 |
| JT/BT |
50-XD27-75 |
27 |
50 |
21 |
XD27-1 |
M12 |
| JT/BT |
50-XD32-75 |
32 |
60 |
24 |
XD32-1 |
M16 |
| JT/BT |
50-XD40-75 |
40 |
70 |
27 |
XD40-1 |
M20 |
| JT/BT |
50-XD50-75 |
50 |
90 |
30 |
XD50-1 |
M24 |
| JT/BT |
50-XD60-75 |
II |
60 |
128.57 |
40 |
- |
- |
|
|
|
|
